AKDAC-3 Evaluation Board
General description
The AKDAC-3 board is designed to help in evaluating the DAC Module. With its integrated user interface it can be used as a complete stand-alone D/A Converter, or, with its various control ports it can be integrated into an existing architecture with external front panel and control.

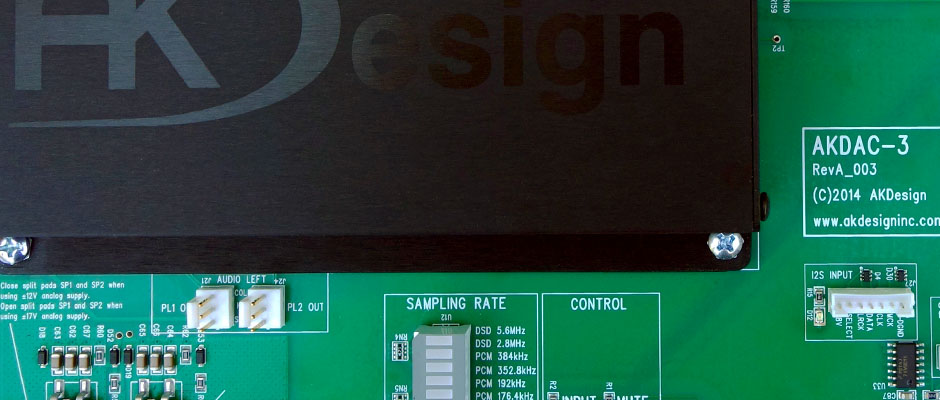

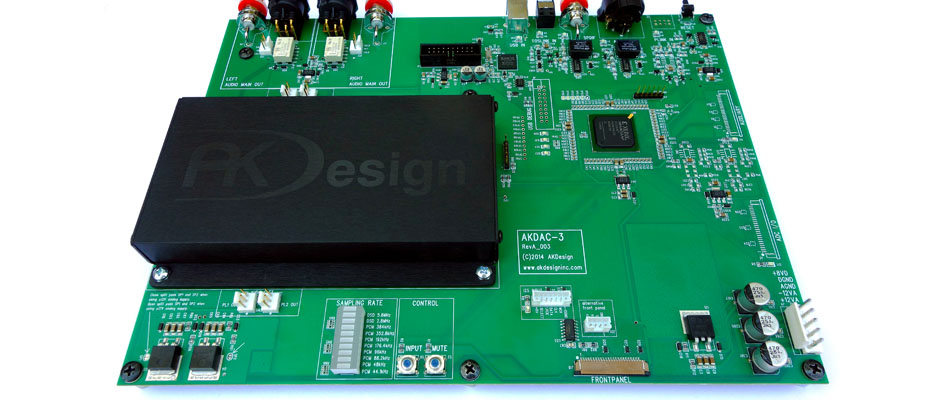

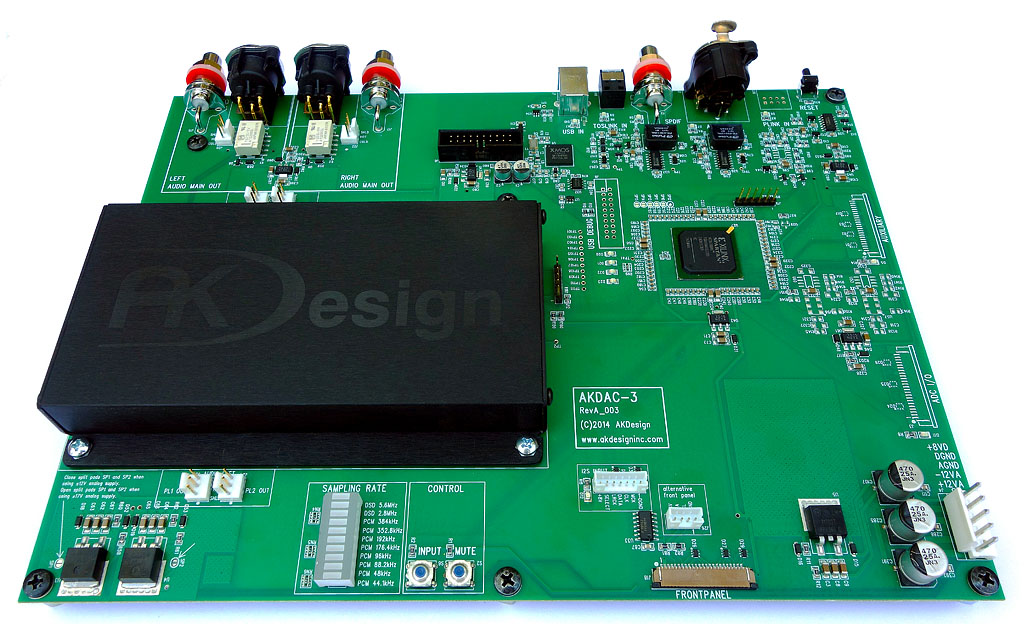

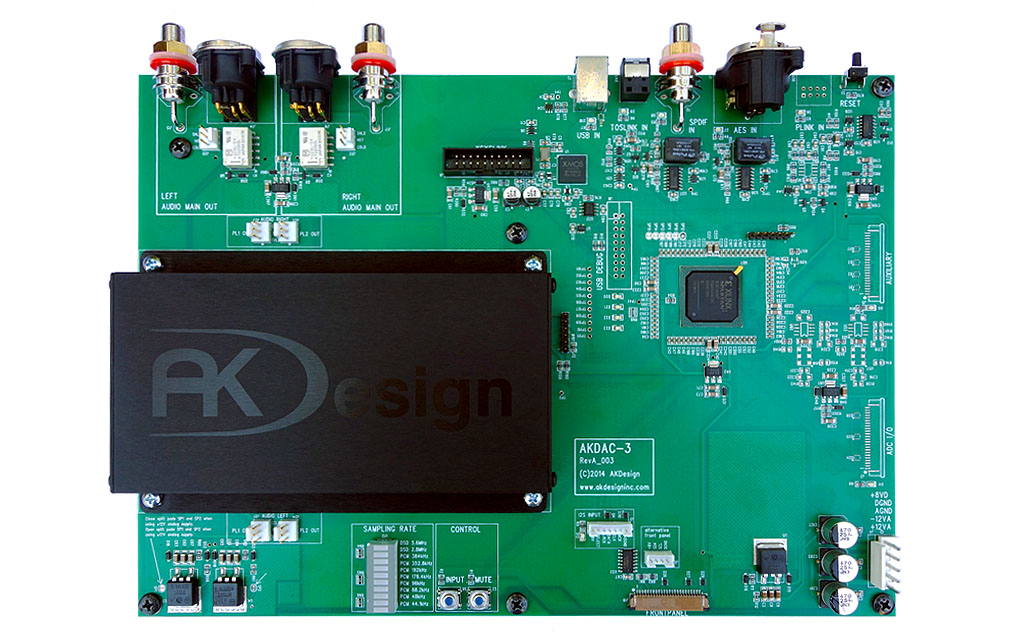

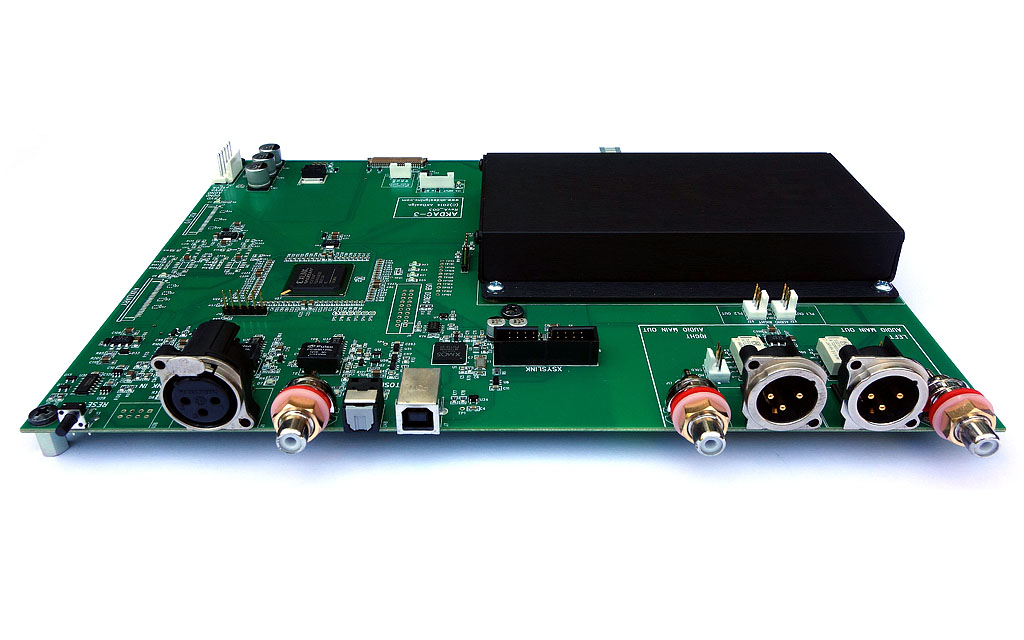

Photos
(DAC-Module sold separately)
Features
- digital inputs: USB, SPDIF, AES/EBU, I2S, TOSLink
- support for PCM sample rates up to 384kHz
- support for DSD sample rates up to 11.2MHz
- analog outputs: balanced XLR, unbalanced RCA, pin headers for internal connections
- analog signals before output stage accessible via pin headers
- on-board user interface for stand-alone operation
- I2C port for external control
